4K Boat Night Vision Cameras: What Manufacturers Don't Always Explain
BoatEye360 · Buyer’s Guide
The Truth About “4K” Boat Night Vision Cameras
When shopping for a boat night vision camera, it is easy to be impressed by the word 4K. It sounds modern. It sounds powerful. It sounds like the image must be four times better.
But here is the part many companies do not explain:
A camera can have a 4K sensor without delivering a 4K image to your chartplotter.
The problem is when the words “4K camera” are used without clearly explaining what the customer will actually see at the helm (Screen).
The Sensor Is Only the Beginning
The image sensor is the part inside the camera that captures the picture. A manufacturer may use a 4K-capable sensor and advertise the entire camera as 4K. However, the image still has to travel through the camera’s processor, video output, cable (HDMI) or network connection (IP), and finally into your GPS chartplotter (MFD).
Think of it like water moving through a series of pipes. You may start with a large pipe, but if the next pipe is smaller, the entire system becomes limited by the smaller pipe.
Video works the same way. A camera may capture a 4K image internally, but then send only 1080p video to the display. The chartplotter may also reduce the image because it cannot accept or display 4K.
The sensor specification alone does not tell you what you will actually see.
Capturing 4K and Outputting 4K Are Different
This is the most important difference to understand.
| Specification | What it actually means |
|---|---|
| Sensor resolution | What the camera may be capable of capturing internally. |
| Output resolution | What actually leaves the camera and travels to your chartplotter. |
Those two numbers may be completely different. A camera may have a 4K sensor but provide:
- A 1080p live video output
- A lower-resolution analog output
- A 720p live viewing
- An upscaled image labeled as 4K
This is why a product listing that only says “4K” does not give you the full story. The better question is:
What is the actual live video resolution coming out of the camera?
IP Camera Marketing Does Not Tell the Whole Story
IP cameras are often advertised with impressive claims such as 4K resolution and digital video output. Those words sound advanced, but they do not guarantee that you will see a better picture at the helm.
An IP camera sends video over a ethernet network cable as compressed data. The advertised resolution may describe the sensor or the maximum recorded file, not the live stream your chartplotter receives. Network bandwidth, compression, and the chartplotter’s ability to decode the signal all affect what actually appears on screen.
In other words, “digital” does not automatically mean “higher quality.” A digital IP stream can still be compressed, delayed, or downscaled before it reaches your display. The honest question is not whether the camera is IP, HDMI, or analog. It is whether the entire chain from camera to screen preserves the resolution and clarity you were promised.

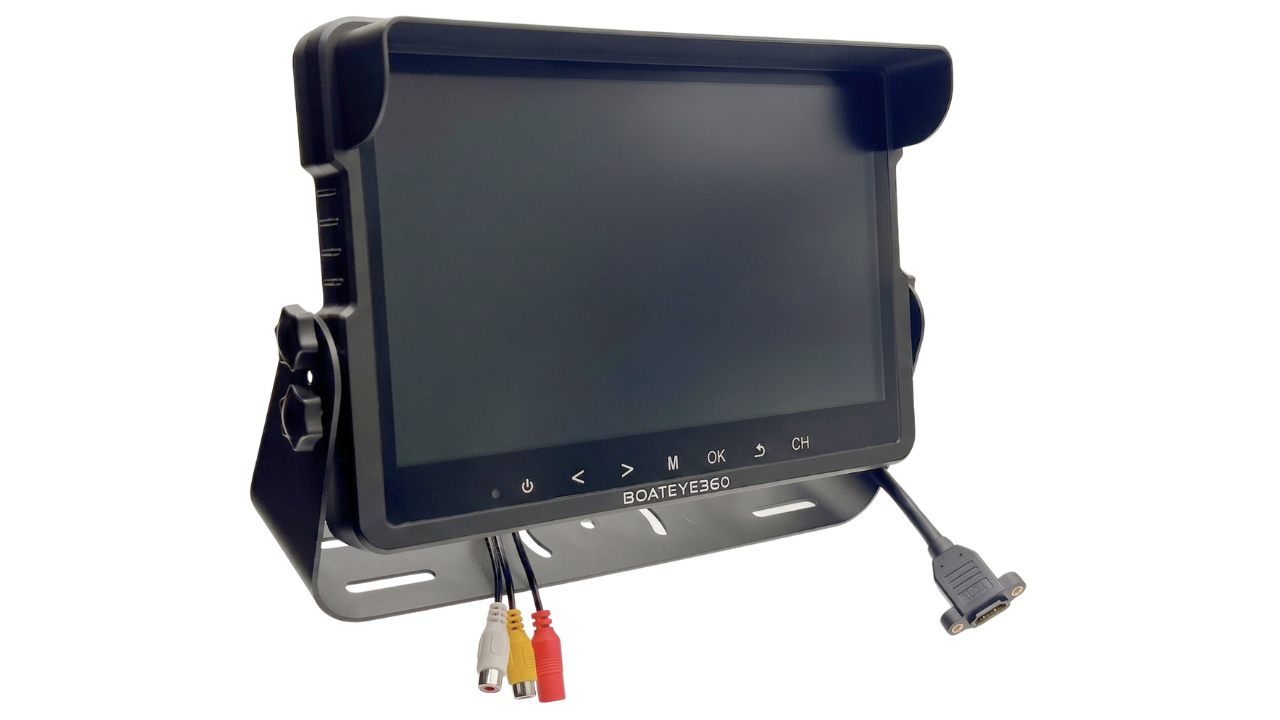

Your Chartplotter/Screen Matters Just as Much
Even when a camera provides a true 4K output, your chartplotter must be able to accept and display it.
Most (99%) marine displays are not built with 4K screens. Their screen resolution may be much lower than 3840 × 2160, which is the standard resolution commonly called 4K. When a 4K image is sent to a lower-resolution screen, the image must be reduced to fit the screen. It may still look clear, but you are not seeing the full 4K image.
This means the camera, connection, chartplotter input, chartplotter software and display panel all have to support 4K before you can truly view 4K at the helm. If one part of the system is limited to 1080p, the final image will be 1080p or lower.
A 4K Label Does Not Guarantee a 4K Experience
Imagine buying a 4K camera and connecting it to a chartplotter that only accepts 720p IP video stream. The camera may technically contain a 4K sensor, but the image you see will still be limited to 1080p. The customer paid for a 4K claim but never received a 4K viewing experience.
That is why the words used in the advertisement matter. There is a major difference between saying:
- “This camera has a 4K image sensor.”
- “This camera provides a true 4K live output that your chartplotter can display.”
Those statements are not the same.
Be Careful With Upscaled 4K
Some converter box take a lower-resolution image and enlarge it into a 4K-sized video file or output. This is called upscaling.
Upscaling increases the number of pixels in the final video, but it cannot create real detail that the camera never captured. It is similar to enlarging a small photograph. The photograph becomes larger, but it does not magically gain new detail.
A camera may technically send a signal labeled 4K while the original image contains much less detail. Always ask whether the video is native 4K or simply upscaled to 4K.
More Pixels Do Not Automatically Mean Better Night Vision
The same scene, the same darkness. Light gathering and processing decide the picture — not the pixel count.
Resolution is important, but it is only one part of image quality. Night vision performance also depends on:
- How much light the sensor can collect
- The quality of the lens
- The lens aperture
- The size and sensitivity of the pixels on sensor
- The quality of the camera’s image processing
- How well noise is controlled
- How the camera handles super dark or bright scenes
A poorly designed 4K camera can produce a dark, noisy or blurry image. A properly designed 1080p camera may produce a cleaner and more useful picture at night.
For boaters, the goal is not to have the largest resolution number on the box. The goal is to clearly see what is ahead of the boat. A sharp, dependable 1080p image can be much more valuable than a weak 4K image that your chartplotter cannot fully display anyway.
What Should You Ask Before Buying?
Before purchasing a camera advertised as 4K, ask the manufacturer a few simple questions:
- What is the sensor resolution?
- What is the actual live output resolution?
- Is the 4K output native or upscaled?
- Is 4K available during live viewing, or only while recording?
- Can my exact chartplotter accept that resolution?
- What resolution will I actually see on my screen?
A trustworthy manufacturer should be able to answer these questions clearly and directly.
The Bottom Line
A 4K sensor does not automatically mean a 4K output.
A 4K output does not automatically mean your chartplotter can accept it.
Even when your chartplotter accepts the signal, its screen may still reduce the image to a lower resolution.
Do not buy a marine night vision camera based only on the largest number in the advertisement. Ask what resolution actually leaves the camera and what resolution you will truly see at the helm. That is the specification that matters.
What BoatEye360 Believes
At BoatEye360, we believe in educating our customers and providing honest answers.
Our CEO believes in building a company based on integrity—not a company that confuses or misleads customers just to make a quick sale. We would rather explain exactly what our products can and cannot do than hide behind impressive-sounding marketing terms.

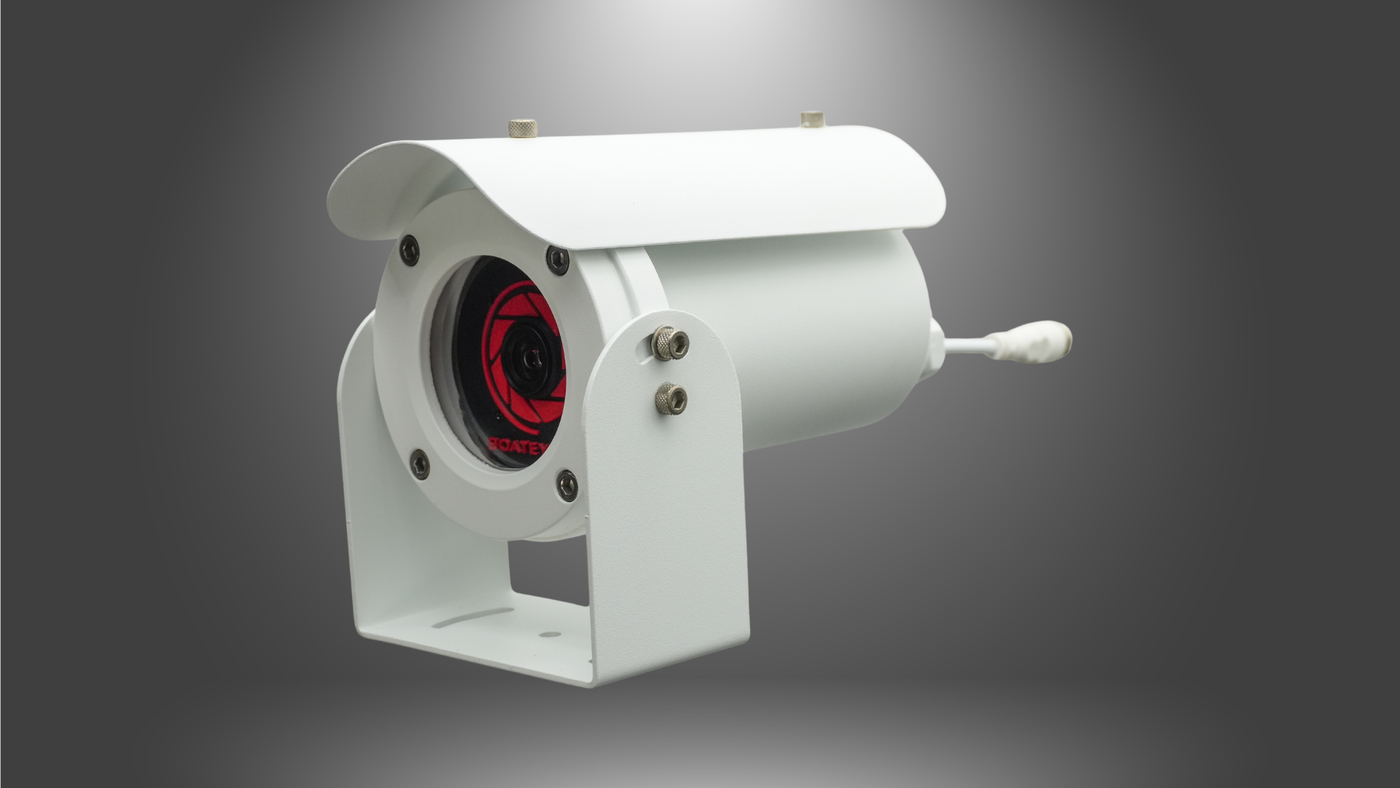

BoatEye360 currently provides two video outputs in a single camera:
- Digital HDMI output at 1080p
- Analog CVBS output at 960 × 480
The final image depends on which connection is used and what the customer’s chartplotter can accept and display.
Confused about camera resolution or chartplotter compatibility?
Give us a call. We are happy to explain it in plain English that the average person can understand.
Talk to BoatEye360In our next article, we will explain the difference between an IP digital camera and an HDMI digital camera, including how each one sends video to your chartplotter.
